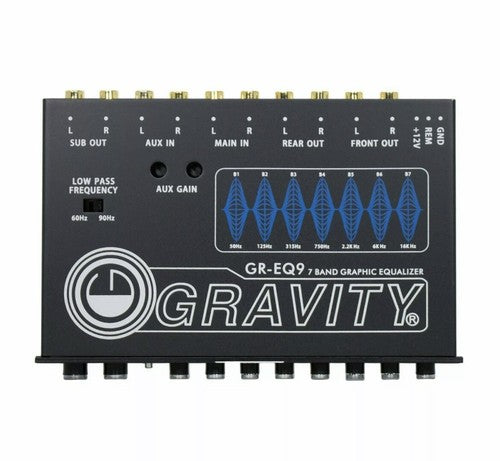

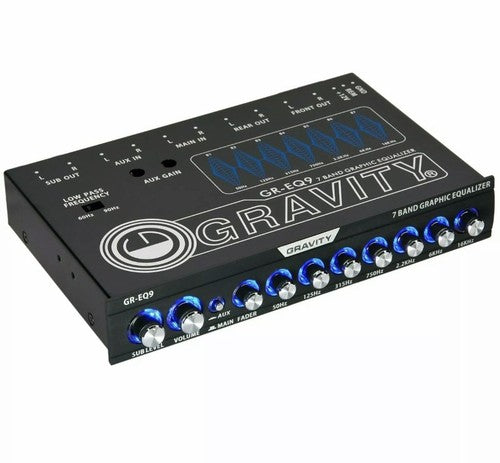

Gravity EQ9 1/2 Din 7 Band Car Audio Equalizer EQ w/ Front, Rear + Sub Output

Gravity EQ9 1/2 Din 7 Band Car Audio Equalizer EQ w/ Front, Rear + Sub Output

$122.26 USD
$122.26 USD
Sale Sold out
Shipping calculated at checkout.

Gravity EQ9 1/2 Din 7 Band Car Audio Equalizer EQ w/ Front, Rear + Sub Output


Product Highlights:

We upgrade our car’s audio stereo systems so that we can get the best sound. Aftermarket components have advanced features that allow us to enjoy an enhanced sound quality of our favorite music. This difference is primarily due to the higher quality materials used to make each component of the audio system. For those who enjoy quality music during a drive, you know that upgrading your car stereo and speakers is not enough. A car equalizer allows you to tailor the sound to what you like for that perfect audio experience.

The function of a car equalizer is to adjust the audio input signals to achieve optimal sound quality. There are varying types of equalizers depending on the number of audio bands each change. The more the controls the more detailed your audio customization will be. If you’re a person fed up with a low-quality audio player, then a car equalizer may be just what you need. Selecting a good one, however, makes all the difference between mediocre sound and an audio party in your car.

This equalizer is a 7-band stereo equalizer / crossover specifically created for the mobile environment.  It provides powerful features in a compact size:

  • Seven equalization bands (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, and 16kHz), each frequency is adjustable from -12 to + 12dB (-15 to +15dB for subwoofer frequencies)
  • Subwoofer output uses a built-in 18dB per octave electronic rossover fixed at 60Hz or 120Hz

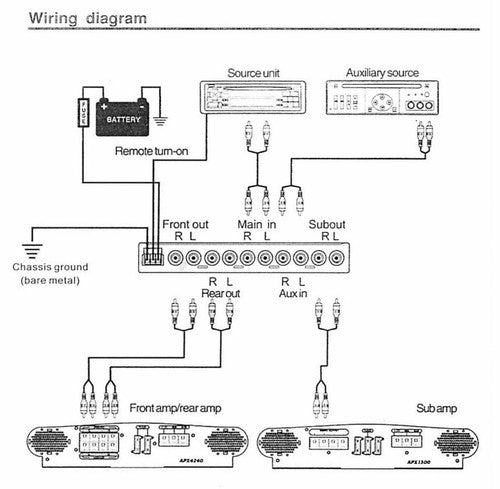

  • Three stereo RCA outputs to drive front, rear, and subwoofer audio amplifiers
  • An auxiliary stereo RCA input for use with portable devices, such as an MP3 Player or DVD player

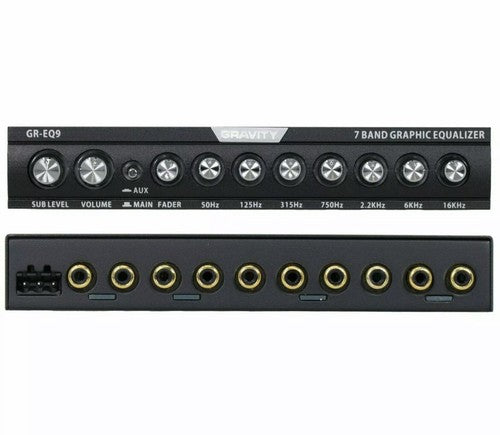

  • Separate controls for master volume, subwoofer volume (sub level), front/rear fader, and selection of main or auxiliary inputs
  • Extended frequency response from 20Hz to 30kHz with exceptional 100dB signal-to-noise performance
  • Gold-plated RCA connectors to ensure the best audio signal output

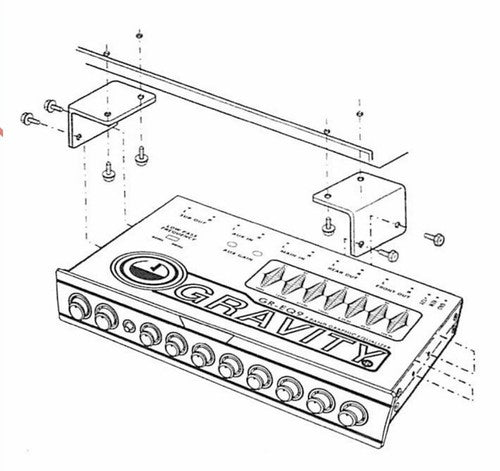

  • ISO mounting holes and removable trim ring for custom installation

Technical Details:

Graphic Center Frequencies:
50Hz, 1256Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz

Boost/Cut: 12dB
S/N Ratio: 100dB
Frequency Response: 10Hz ~ 50kHz +/-1dB
Maximum Output Voltage: 7V
THD: 0.005%
Input Sensitivity: 50mV ~ 3V
Head Room: 20dB
Input Impedance: 20kOhms
Output Impedance: 2kOhms
Stereo Separation: 82dB/1kHz
Operating Voltage: 11V ~ 15V Negative Ground
Size: 7 x 4 1/8" x 1 inches

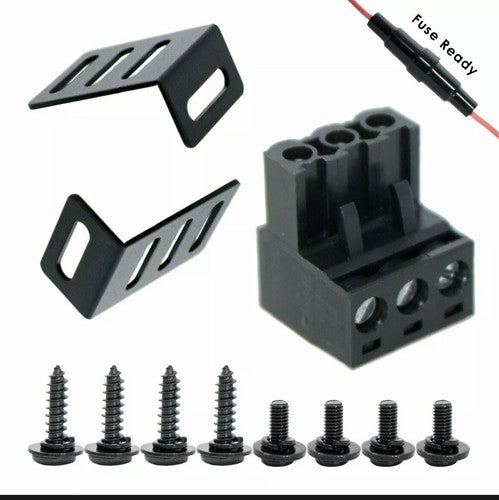

Package Contents:

1 * Graphic EQ 7 Band
1 * Power Adapter Connector
2 * Bracket
8 * Screws
1 * Manual

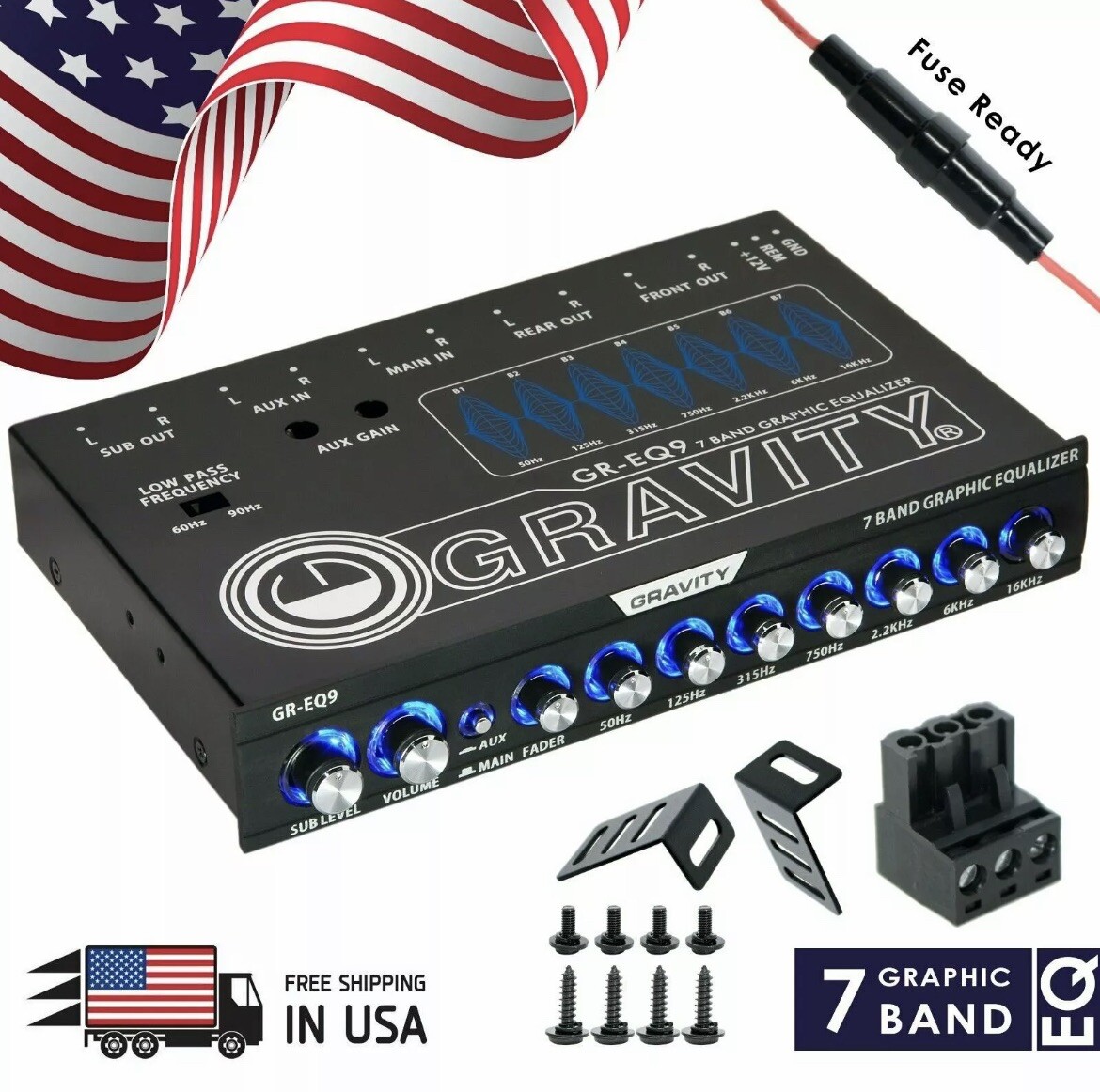

Image 1 - Gravity EQ9 1/2 Din 7 Band Car Audio Equalizer EQ w/ Front, Rear + Sub Output
